Cold Plate Paint Low Power Energy Saving AC HEPA Fan Filter Unit H14 Filter

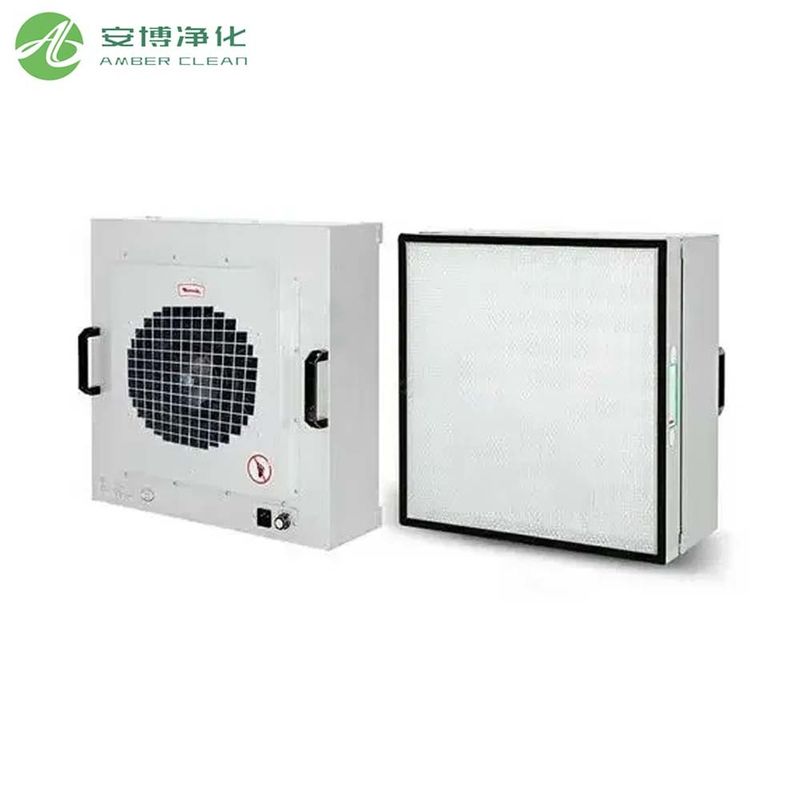

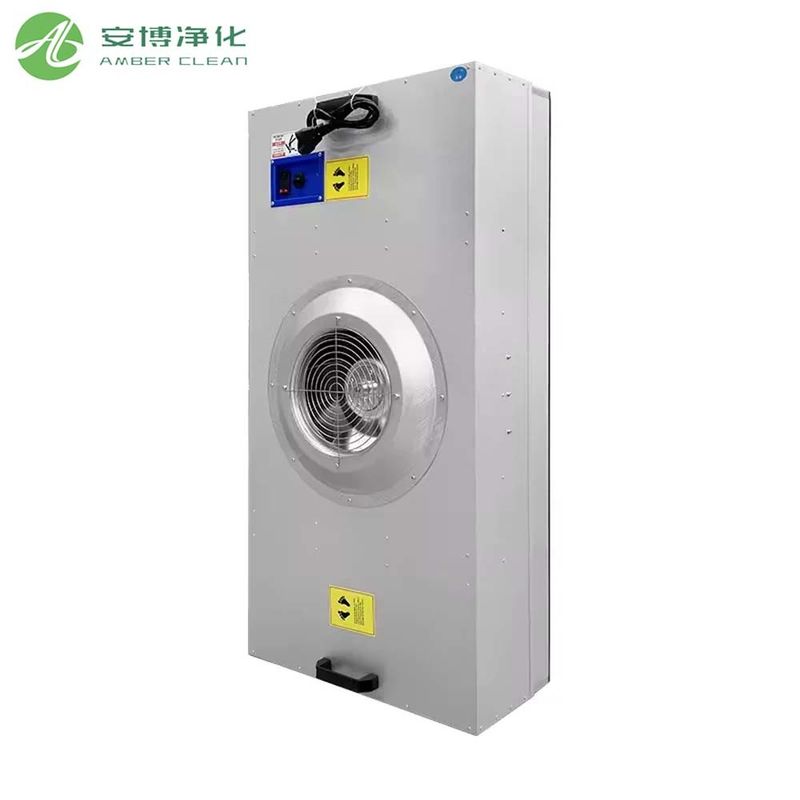

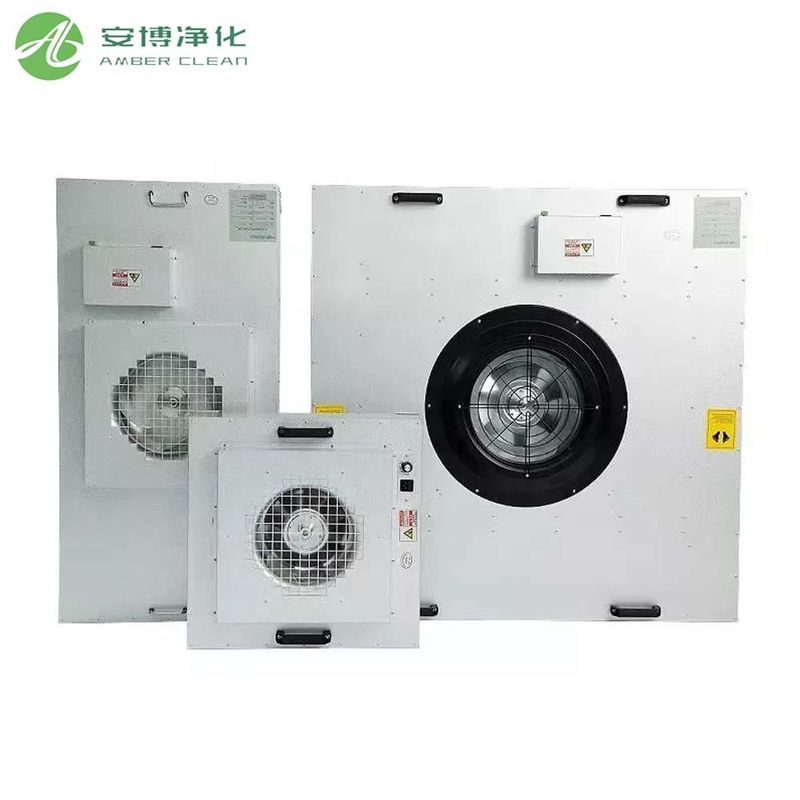

The AC HEPA Fan Filter Unit is a terminal purification device that integrates a fan and a high-efficiency air filter (HEPA) or ultra-high-efficiency air filter (ULPA) within a single module.

This product utilizes a cold plate spray coating process, resulting in a corrosion-resistant and easy-to-clean surface. Equipped with an H14-grade HEPA filter (filtration efficiency ≥99.997%, MPPS particles), it effectively removes suspended particulates ≥0.3μm, ensuring cleanroom air purification requirements of Class 100 to 10,000.

The unit features an optimized internal air duct structure and a low-power AC fan, ensuring high filtration efficiency while providing stable and uniform airflow distribution, minimizing turbulence and dead spots. It is commonly used for terminal air supply in cleanrooms such as chip manufacturing, pharmaceutical production, food processing, cosmetics production, and modular operating rooms.

Why AC FFUs are More Energy-Efficient Than DC FFUs

Many users often perceive DC fans as more energy-efficient. However, in industrial purification equipment, AC HEPA Fan Filter Units offer significant energy-saving advantages in specific application scenarios:

Stable Constant Speed Characteristics

AC fans offer high speed stability, making them suitable for long-term, constant air volume cleanroom operation. They eliminate the need for frequent speed adjustments, thus reducing energy consumption fluctuations.

Efficiency Range More Suitable for Purification Applications

Under rated operating conditions, the AC fan's energy efficiency ratio (air volume/power consumption) closely matches the purification system's resistance curve, enabling it to maintain high static pressure output at low power input, reducing excess energy consumption.

Low Long-Term Operation and Maintenance Costs

AC fans offer a simple structure and long motor life, eliminating the labor and spare parts costs associated with frequent replacement and commissioning, indirectly reducing overall lifecycle energy consumption and costs.

Based on our extensive product testing, the Industrial Fan and Filter Unit (IFFU) can reduce total power consumption by 5%-10% compared to some low-end DC solutions at the same cleanroom cleanroom level, making it ideal for continuously operating cleanrooms.

HEPA Fan Filter Unit Installation Precautions

During cleanroom construction, the installation accuracy of the HEPA Fan Filter Unit directly impacts air cleanliness and operating costs. Key considerations include:

Correct Filter Installation Orientation

HEPA/ULPA filters have an inlet side and an outlet side. Installing them in the wrong direction will result in:

• Significantly reduced filtration efficiency, preventing the design cleanroom level from being achieved

• Increased air resistance, hindering air intake, increasing fan load and energy consumption

• Shortened filter life

Sealing Strip Integrity Check

Before installation, ensure that the sealing strip between the filter and the housing is not damaged or warped. Otherwise, bypass leakage will occur, impacting cleanroom performance.

Air Velocity and Pressure Differential Testing

After installation, air velocity and static pressure should be tested to ensure even airflow distribution and operation within the system resistance curve.

Avoiding secondary contamination

The installation process should be performed in a cleanroom environment. Operators must wear cleanroom clothing to prevent dust, fibers, and other impurities from entering the filter.

FFU Fan AC Motor vs DC Motor

Our DC motors are Japanese Nidec brand. If your budget is high, you can choose a DC FFU.

If you require a higher level of air filtration, our Amber Team can also provide customized ULPA Fan Filter Unit solutions. We offer one-stop services including design, installation, and commissioning to ensure long-term, stable operation of your cleanroom. Please contact us if you require any assistance.
